3U ATX PSU Chassis
- Liquid cooling support for: 1x 360mm AIO, 1x 240mm AIO, or 2x 120mm AIOs
- Mounts up to 3x 120mm fans; supports air coolers up to 110mm tall
- Supports ATX, SSI-CEB, and EATX motherboards up to 10.5" deep
- 1x 5.0 riser to support 1x 3.5-slot GPU
- SFX or SFX-L PSU compatibility
- Made in USA with US materials
- Form Factor
- 3U
- Motherboard Size
- Mini-ITX / MicroATX / ATX
- Radiator Size
- 240mm
- Power Supply Type
- ATX
- PCIe Expansion Slots
- Full Height
3U rackmount chassis for systems that require ATX power supply support, front USB 3.0 access and practical rackmount integration.

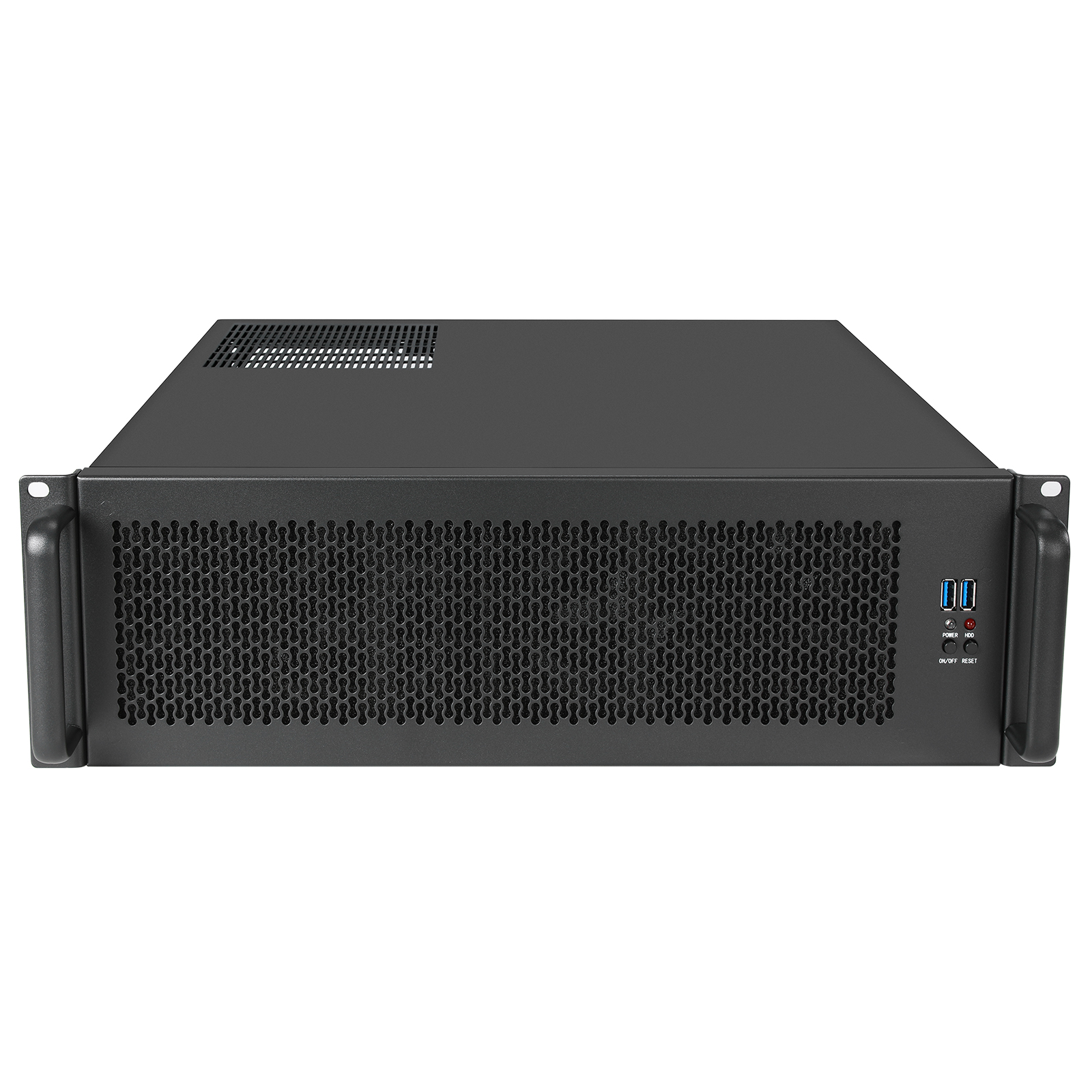

- USB : USB3.0*2+USB2.0*2
- MB support EATX or CEB or ATX or MicroATX or Mini ITX

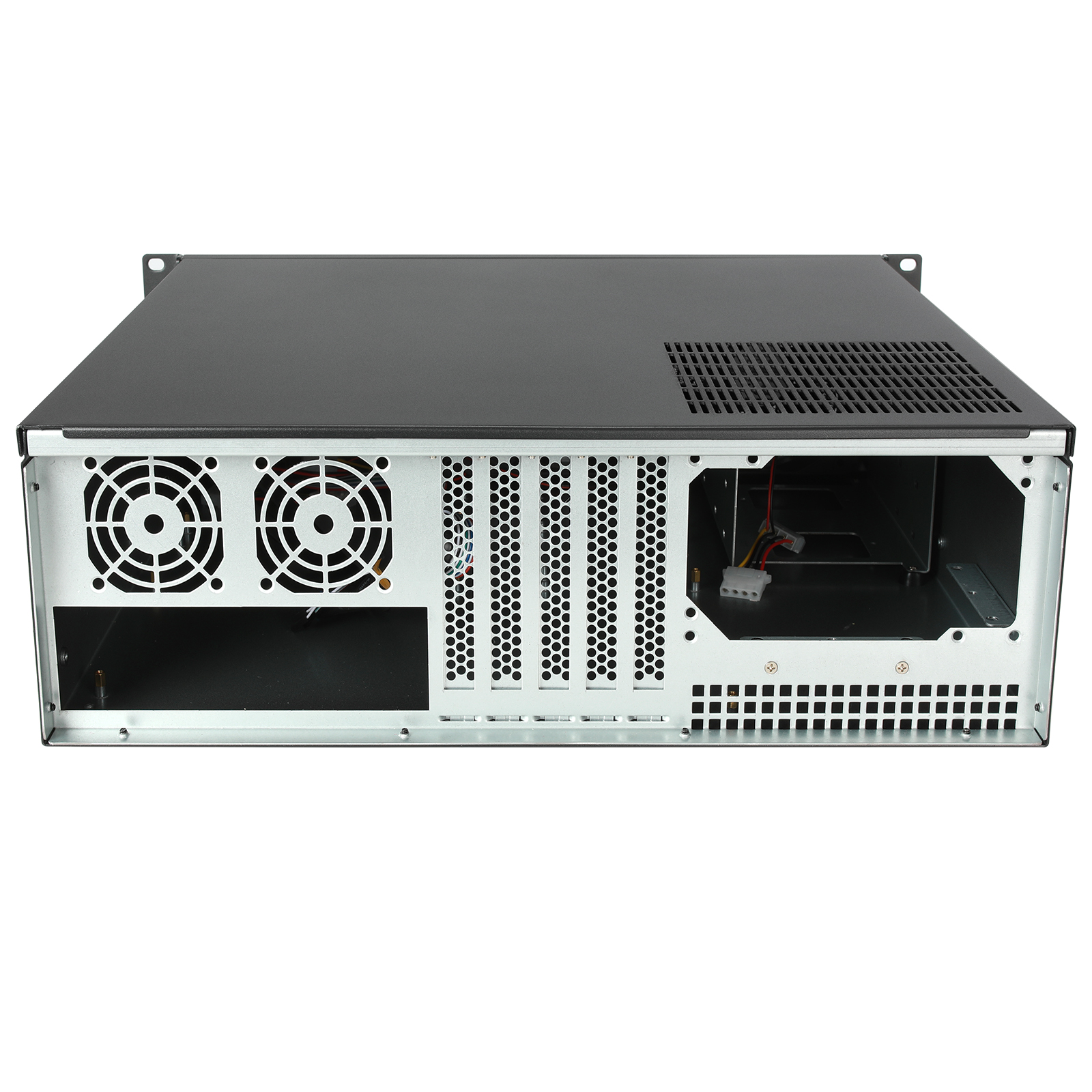

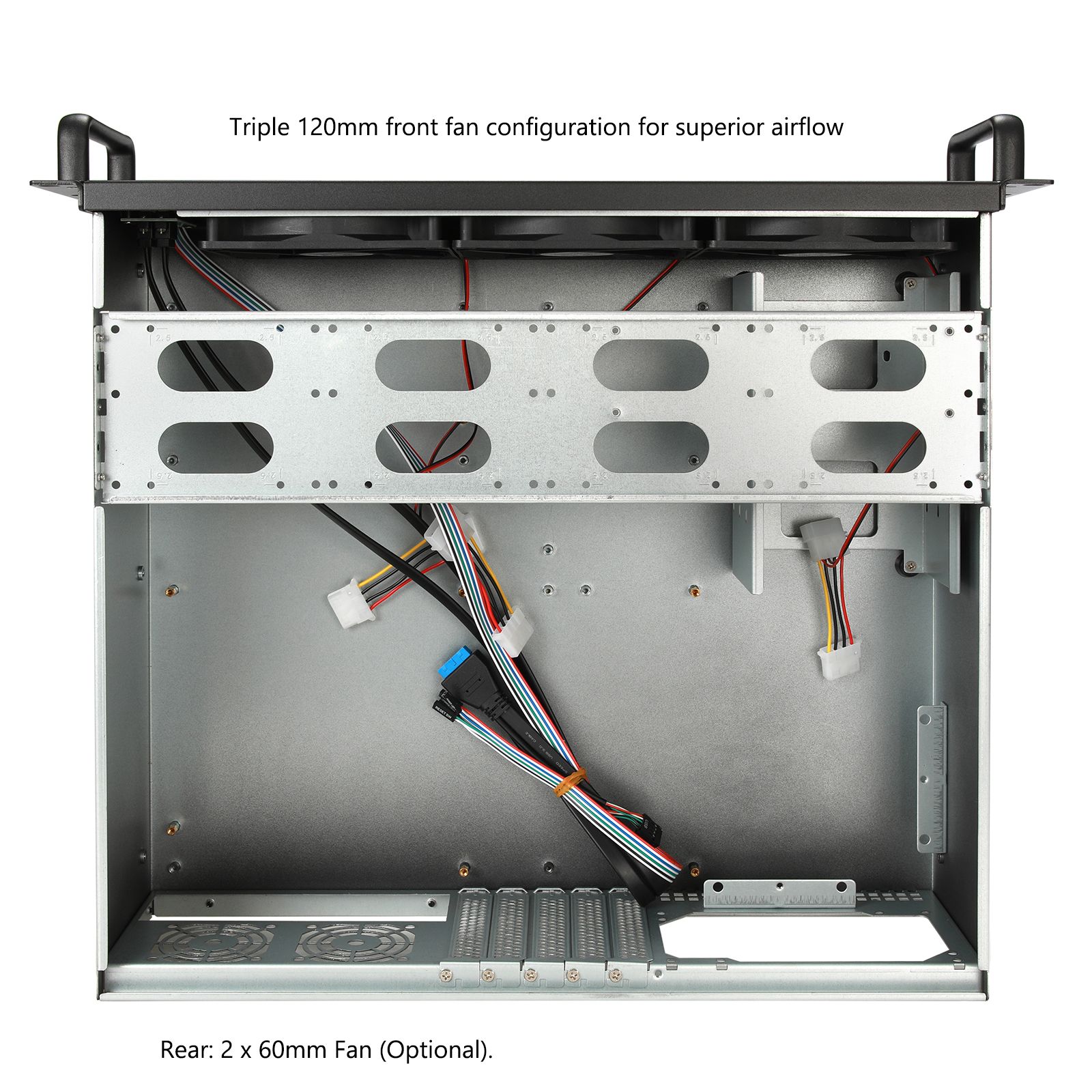

- COOLING: 3x120mm & 2x60mm for option

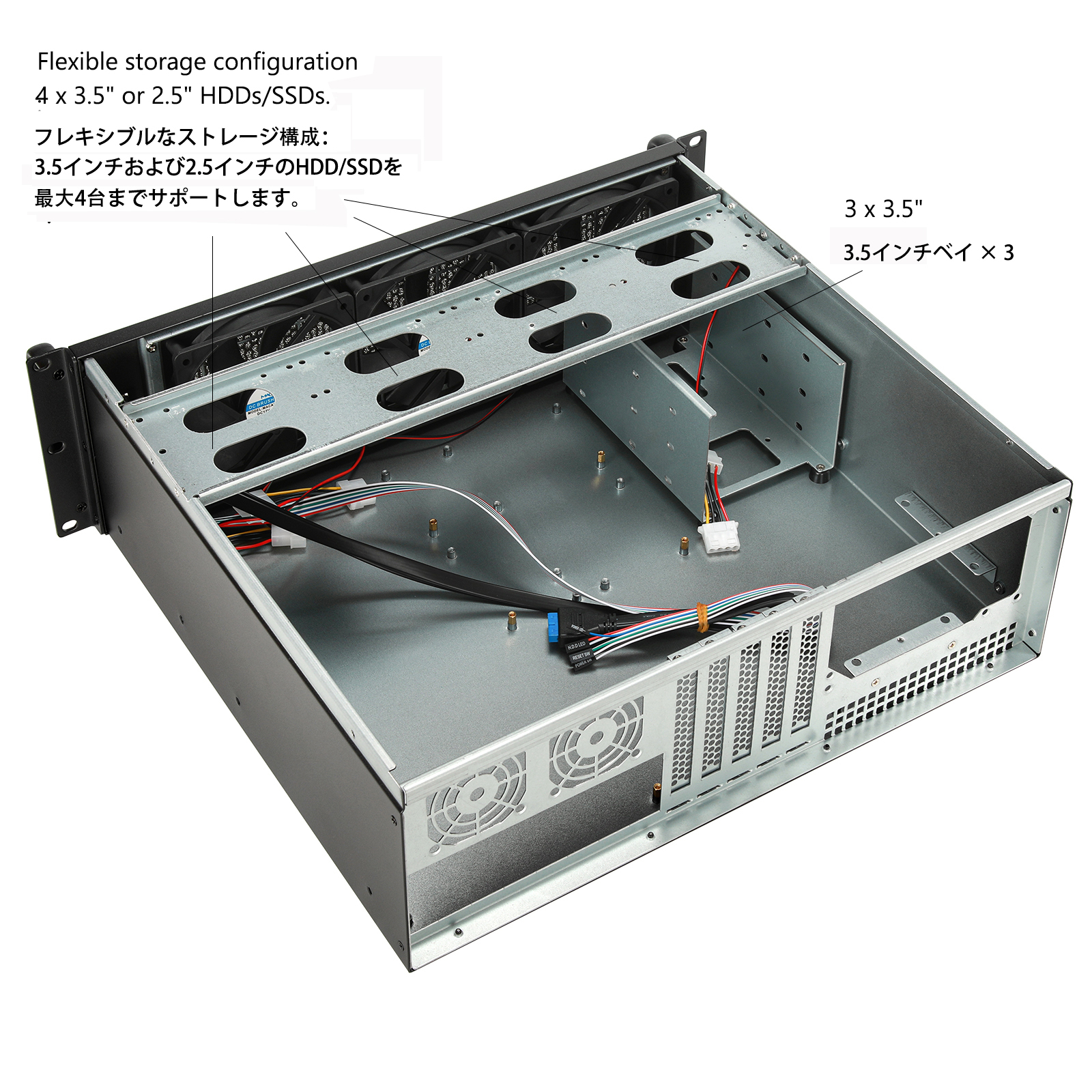

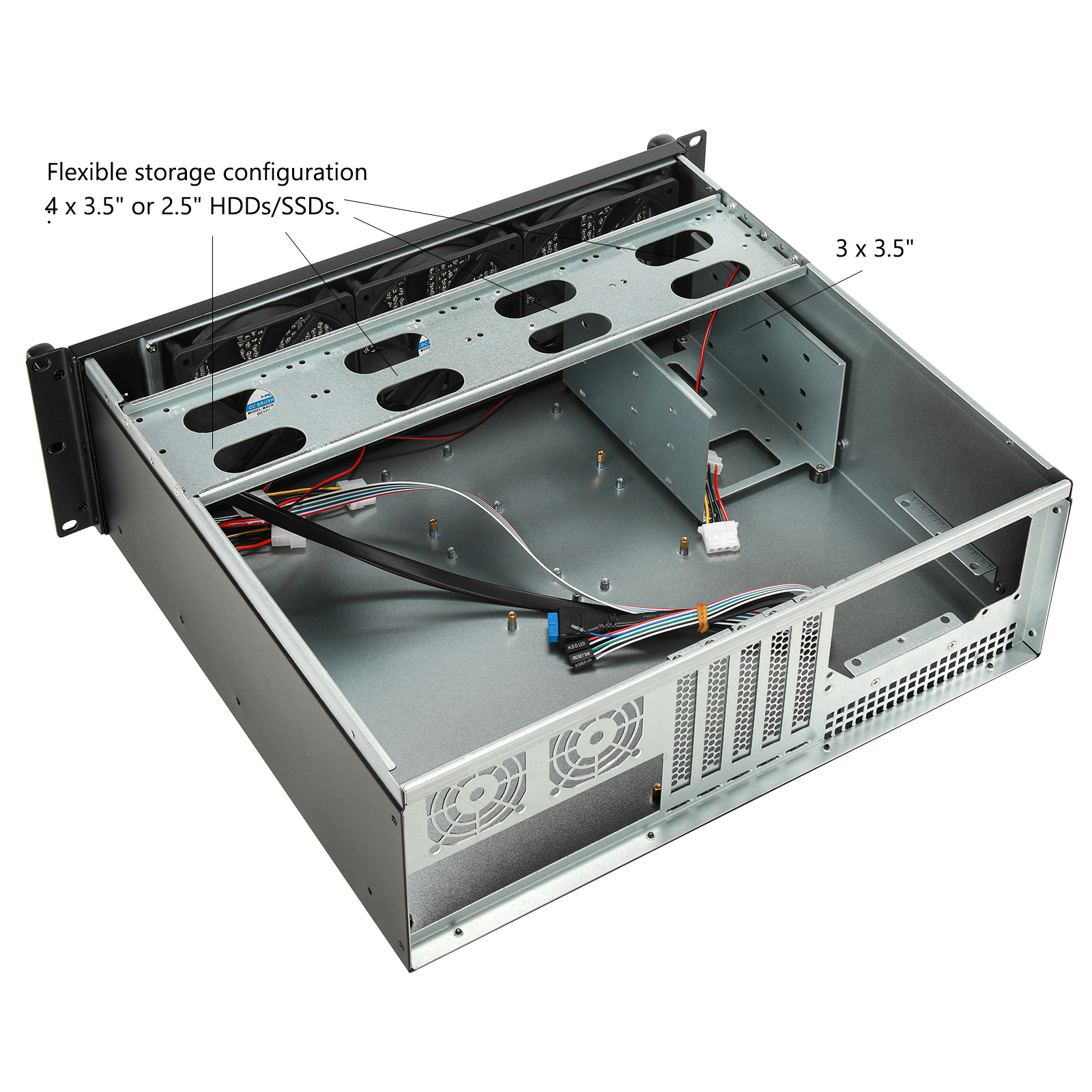

- Storage : Multiple drive bay locations support various storage configurations, with easy-access mounting points
- Power Supply Units (PSU): SUPPORT with ATX eithereither Top-Mounted or Side-Mounted Fan Cooling
| Describe | Version | File Size | Download |
|---|---|---|---|
| 3U ATX PSU Chassis High resolution photos | - | 8.21 MB | Download 3U ATX PSU Chassis High resolution photos |
Find the right fit for your rack.
Tell us your motherboard, rack space and power requirements.
